Linked list terms : Definitions



Some Terminology Of Linked List :

Consider the following node structure -

struct node {
      int data;
      struct node *next;
}*start = NULL;
struct node *new_node,*current;

Summary of Different Linked List Terms :

Declaration Term Explanation
struct node *new_node,*current;
Declaring Variable of Type Node.
*start = NULL;
Declared a global variable of type node. “start” is used to refer the starting node of the linked list.
start->next
Access the 2nd Node of the linked list. This term contain the address of 2nd node in the linked list. If 2nd node is not present then it will return NULL.
start->data
It will access “data” field of starting node.
start->next->data
It will access the “data” field of 2nd node.
current = start->next
Variable “current” will contain the address of 2nd node of the linked list.
start = start->next;
After the execution of this statement, 2nd node of the linked list will be called as “starting node” of the linked list.

Explanation of Terms :

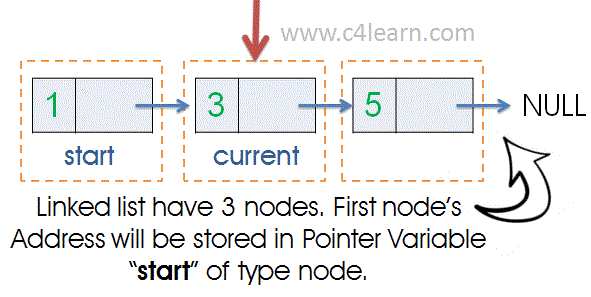

Different Terms in Linked List _ 1
Consider the above linked list , we have initial conditions -

  1. “start” node is pointing to First Node [ data = 1 ]
  2. “current” node is pointing to Second Node [ data = 3 ]

with respect to the above linked list , data will be -

Term Explanation
current = start->next
current” will point to node having data = 3
int num = start->data
num” will contain integer value “1“.
int num = start->next->data
num” will contain integer value “3“.
temp = current->next
temp” will point to node having data = 5
int num = current->data
num” will contain integer value “3“.
int num = current->next->data
num” will contain integer value “5“.
