Insert node at Last Position : Singly Linked List



Insert node at Last / End Position in Singly Linked List


Inserting node at start in the SLL (Steps):

  1. Create New Node
  2. Fill Data into “Data Field
  3. Make it’s “Pointer” or “Next Field” as NULL
  4. Node is to be inserted at Last Position so we need to traverse SLL upto Last Node.
  5. Make link between last node and newnode
void insert_at_end()
{
struct node *new_node,*current;

new_node=(struct node *)malloc(sizeof(struct node));

if(new_node == NULL)
   printf("nFailed to Allocate Memory");

 printf("nEnter the data : ");
 scanf("%d",&new_node->data);
 new_node->next=NULL;

 if(start==NULL)
 {
   start=new_node;
   current=new_node;
 }
 else
 {
   temp = start;
     while(temp->next!=NULL)
     {
     temp = temp->next;
     }
   temp->next = new_node;
 }
}

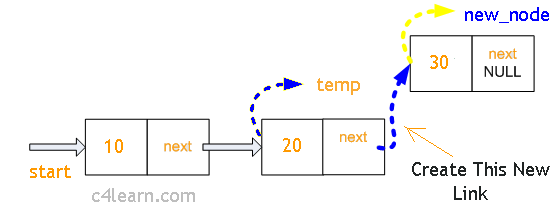

Diagram :
insert_last
Attention :

  1. If starting node is not available then “Start = NULL” then following part is executed
if(start==NULL)
       {
       start=new_node;
       current=new_node;
       }
  1. If we have previously created First or starting node then “else part” will be executed to insert node at start
  2. Traverse Upto Last Node., So that temp can keep track of Last node
else
       {
       temp = start;
   while(temp->next!=NULL)
  {
  temp = temp->next;
  }
  1. Make Link between Newly Created node and Last node ( temp )
temp->next = new_node;

To pass Node Variable to Function Write it as –

void insert_at_end(struct node *temp)
